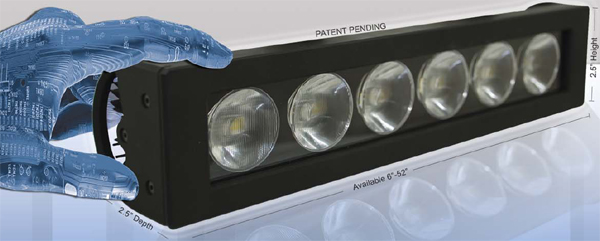

  Low Current Reflex LED Smart Auxiliary Light Bar - Euro Beam
REFLEX LED Light Bars feature 10-watt LEDs that produce an astonishing 900 Lumens per LED, meaning each LED puts out as much light as a typical car headlight. The REFLEX R1 series comes in lengths ranging from 6" all the way up to 52", with custom applications possible. A 12" bar will produce 5,400 Lumens, the most lumens per inch in its class.
Of course for normal off road light use, install your Reflex straight out of the box with a simple two wire hookup.
Nearly indestructible extruded aluminum housing.
Unbreakable polycarbonate lenses.
Very compact housing roughly 2.5" x 2.5" fits almost anyplace
7000k super white light (replicates bright sunlight)
Digitally dimmable (with controller)
Operates on 9-32 volts DC
Lifetime Warranty that actually means what it says
7 Models Available
XIL-R120 - 6" Reflex LED SMART LIGHT BAR TWO 10-WATT LED'S
XIL-R140 - 9" Reflex LED SMART LIGHT BAR FOUR 10-WATT LED'S
XIL-R160 - 12" Reflex LED SMART LIGHT BAR SIX 10-WATT LED'S
XIL-R1100 - 20" Reflex LED SMART LIGHT BAR TEN 10-WATT LED'S
XIL-R1180 - 34" Reflex LED SMART LIGHT BAR EIGHTEEN 10-WATT LED'S
XIL-R1220 - 40" Reflex LED SMART LIGHT BAR TWENTY-TWO 10-WATT LED'S
XIL-R1280 - 52" Reflex LED SMART LIGHT BAR TWENTY-EIGHT 10-WATT LED'S
XIL-R1300 - 72" Reflex LED SMART LIGHT BART THIRY-EIGHT 10-WATT LED'S
Available Beams
10° Narrow Beam
15° Medium Beam
35° Wide Beam
45° X Axis /15° Y Axis Elliptical Beam
|
Reflex Series Specs |
|
|
|
Reflex Part # |
Size |
# of LEDs |
Amp Draw @ 12V |
Lumens |
| XIL-R120 |
6" |
2 |
1.5 |
1,800 |
| XIL-R140 |
9" |
4 |
3 |
3,600 |
| XIL-R160 |
12" |
6 |
4.5 |
5,400 |
| XIL-R1100 |
20" |
10 |
7.5 |
9,000 |
| XIL-R1180 |
34" |
18 |
13.5 |
16,200 |
| XIL-R1220 |
40" |
22 |
16.5 |
19,800 |
| XIL-R1280 |
52" |
28 |
21 |
25,200 |
| XIL-R1300 |
72" |
38 |
28.5 |
34,200 |
|
:
