  Wired Display - 4 In-Bumper or Stick-On Colored Reverse Sensor Kit
 A new breakthrough design! Unit senses any objects behind and to the side of the rear bumper (metal or plastic) within 59" through 4 small Black 22mm Anti-Collision Ultrasonic sensors that are mounted into the bumpers by drilling 22mm holes (drill bit included) giving you a wider, more accurate field of detection. Audible & Visual Warning. Now shipping with a new 20mm sensor which is the smallest in the industry.
Chosse between Flat flush mounting In-Bumper or Stick-on sensors.
Speaker built into the display with volume control.
Kit features 4 sensors for full back coverage.
Unique rain-proof design works even when it is raining.
Power is supplied by splicing into backup lights and ground.
Functions:
Auto detection of obstacles Behind & Left or Right by the backward radar while backing the car. Display is in inches.
Four 22mm recessed sensors with 10 foot leads (25 foot leads available) or 4 Stick-on sensors with 10 foot leads for obstacle detection
Digital Detection range: 4" - 59" behind the car.
Audible warning sound of "BiBi", faster as you get closer to obstacle.
Sound can be adjusted to higher, lower or off.
The distance and direction of obstacles behind and to the left or right side are displayed clearly with digit and cursor in number of feet.
All components plug into each other.
Built to last - withstands bad weather and road shock.
Operating Voltage: DC 12v
Max. Power Consumption: 4W
Package Include:
Car parking control unit (mount in trunk/rear of vehicle).
3 digit LED Display (3" wide x 1" high x 1/2" deep) with 16' cable (usually mounted in left corner or center of dash) with built in speaker with volume control.
4 obstacle sensors (choose below) with 8' leads (25' leads available).
Installation Manual (click to download).

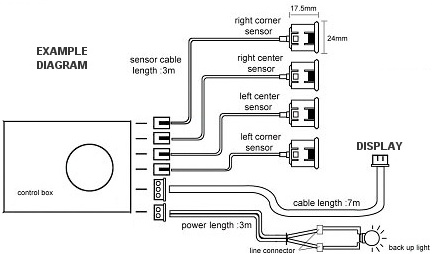

Wiring Diagram
Drill Bit for drilling holes into bumper to mount the 4 sensors (If drilling through Metal, you will need a bi-metal 22mm bit).
4 Clear Sensor spacers for aiming In-bumper sensors up for non vertical bumpers or bumpers with height below 20".
6 Months Warranty
Click Here to view a 24 minute Sample Installation Video (requires IExplorer)
In Bumper Available Sensor Colors (all colored sensors are the same design as the Black Sensor)
STICK-ON SENSOR
