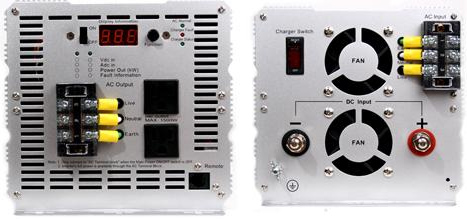

3000 Watt DC to AC Modified Sine Wave 24 volt Inverter with charger and transfer switch
This 3000 Watt 24 volt Inverter Charger with built in Transfer Switch was designed with our customers in mind. The 3000 Watt Inverter Charger boasts a 15 amp charger and a built in transfer switch. In addition the AC input has been redesigned to fit any application. The new AC input is a simple input terminal block giving our customers the flexibility to hook up the AC input the way they want to. Also it allows you to push the full 3000 watts when on city power. The Competitors have similar units that have an AC input limited to a single 1500 watt household outlet. There are also two standard AC plugs on the output side as well. The last upgrade is the addition of a switch to turn off the charger for those that might already have a charge in their system you can shut off the charger on this unit.
Features:
- 3000W max continuous power
- Modified sine wave
- Automatic transfer switch
- 15 amp smart battery charger
- Green LED indicates ac input power is functional and battery is charging
- Transfer switch automatically switches when city power is lost
- Red LED indicates ac input power is not functional and battery is being used
- Dual ac receptacle
- Over Temperature protection
- Over Load protection
- Single cooling fan operation
- Internally fuse protected
- ac output short circuit protection
- Aluminum case for optimal cooling
- Pre-slotted mounting plate
- Instruction manual
- Free 1 year tech support
- 1 Year Warranty Parts and Labor
Specifications:
- Continuous output power: 3000 Watts
- Surge power capability (peak power): 6000 Watts
- dc input / operating voltage: 35 to 20 Volts
- Output voltage: 120 Volts ac
- Output frequency: 60 Hz +/1 .5 Hz
- Battery low voltage alarm: 20.5 +/- 0.5 Volts
- Battery low voltage shutdown: 20.0 +/- 0.5 V
- No load minimum operating temperature: 25 degrees F
- Full load maximum operating temperature: 140 degrees F (automatic shutdown)
- Efficiency: 85-90%
- No load draw @ 24V: 0.6 amps
- AC amps: 25
- DC amps: 125
- AC Output Socket Type: dual Type 2 -3 prong
- High input voltage protection: 35V
- Low input voltage shutdown: 20V
- Internal fuse protection
- <3 sec transfer time between loosing ac input power and switching to providing ac output power
- Product size (L x W x H): 19.5 X 7 X 6.5
- Weight Unit: 18 lbs
- Boxed Weight: 22 lbs
|
:
